TANK CLEANERS

Their primary function is to efficiently and evenly distribute cleaning liquids over all internal surfaces of a tank. These nozzles generate powerful spray patterns, often with rotating movements, to remove contamination, residues, and build-ups.

They are essential in industries such as food and beverage processing, pharmaceutical manufacturing, and chemical processing, where hygiene and cleaning are critical.

TF3

  • Flow rate: 29 to 48 lpm @ 3 bar
  • Coverage: 180° Up – 180° Down – 360°
  • No ball bearings, resulting in less wear.
  • Connection: ½” male thread
  • The liquid generates the rotating movement.
  • The rotation speed depends on the liquid pressure.
  • Material: PTFE
  • Maximum spray distance (radius): 2 – 3 m

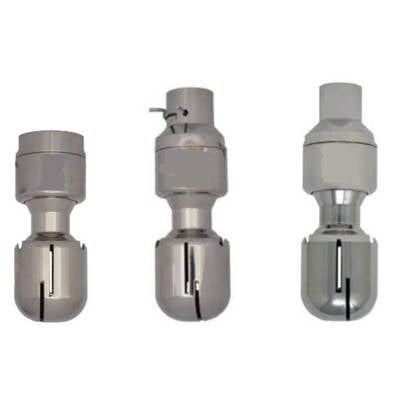

LSD

  • Flow rate: 63 to 170 lpm @ 3 bar

  • Coverage: 270° Up – 270° Down – 180° Up – 180° Down – 360°

  • Connection: male thread, clip or weld connection

  • Material: Stainless steel 316

  • Double ball bearings

  • Maximum spray distance (radius): 3.7 m

LSE

  • Flow rate: 29 to 48 lpm @ 3 bar

  • Coverage: 180° Up – 180° Down – 360°

  • Connection: male thread, clip or weld connection

  • Material: Stainless steel 316

  • Double ball bearings

  • Maximum spray distance (radius): 1.5 – 2 m

FLSW

  • High-pressure washing

  • Flow rate: 40 to 171 lpm @ 3 bar

  • Coverage: 180° Up – 180° Down – 360°

  • Connection: 3/4" female thread

  • Material: Stainless steel 316

LSD M6

  • Developed for test tubes, small bottles and small objects with a 10 cm opening.

  • Flow rate: 5.5 to 9.8 lpm @ 3 bar

  • Coverage: 270°

  • Connection: M6

  • Material: Stainless steel 316

  • Maximum spray distance (radius): 0.1 – 0.6 m

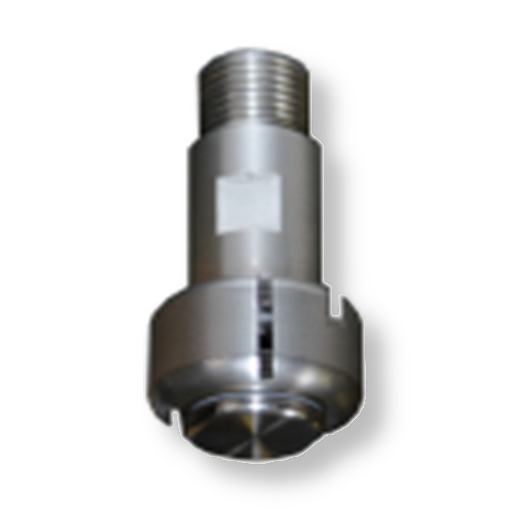

DTK

  • Suitable for tank cleaning, drum cleaning and IBC cleaning

  • Connection: 1/4″ BSP thread

  • Construction with ball bearings

  • Material: Stainless steel 316

LSMOD1

  • Flow rate: 10.4 to 28.8 lpm @ 3 bar

  • Coverage:
    180° Up – 180° Down
    270° Up – 270° Down
    360°

  • Connection: 1/4” – 3/8”

  • Material: Stainless steel 316

  • Maximum spray distance (radius): 1 – 1.2 m

LSMOD3G

  • Flow rate: 54 lpm @ 3 bar
  • Coverage: 360°
  • Connection: 1/4” – 3/8” – Clip
  • Material: Stainless steel 316
  • Maximum spray distance (radius): 1.5 m

LSMOD3L

  • Flow rate: 233 – 300 lpm @ 3 bar

  • Coverage: 180° Up – 180° Down - 360°

  • Connection: 1 1/4” – Clip

  • Material: Stainless steel 316

  • Maximum spray distance (radius): 3.2 – 4.6 m

LSMOD5B

  • Flow rate: 120 to 294 lpm @ 3 bar

  • Coverage: 270° Down

  • Connection: Clip or weld connection

  • Material: Stainless steel 304

  • Maximum spray distance (radius): 3 – 4.2 m

MLF

  • For oven washing

  • Optimal droplet distribution at medium-low pressure

  • High impact with low water consumption

  • Rotation speed with reduced speed

  • Can be used at high temperatures

  • Flow rate: 3.8 to 6.2 lpm @ 3 bar

  • Coverage: 110°

  • Connection: 3/8”

  • Material: Stainless steel 316
